Large Digital Screen Control with Easy SYN Mode
- Effortless SYN Control
- 10 Customizable Presets
- Clear, Accurate Data Display
- Safety Color Alerts
Arccaptain

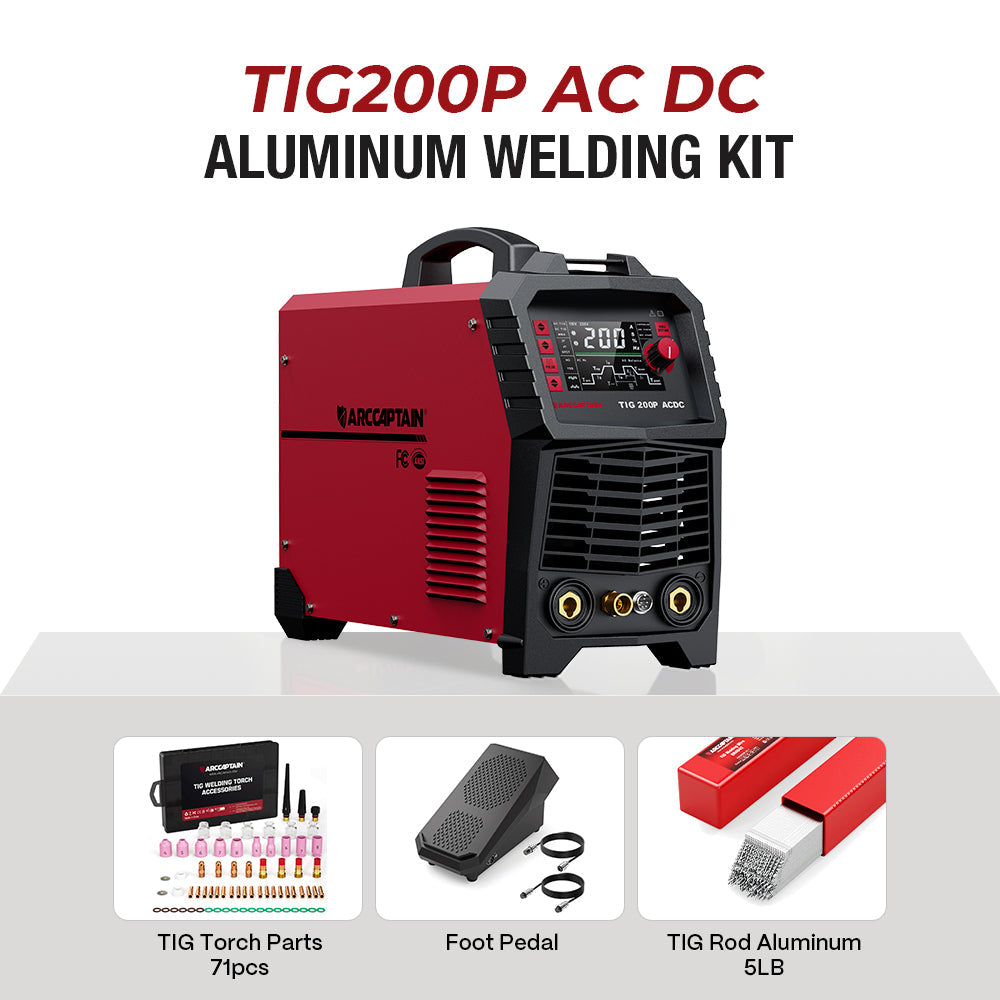

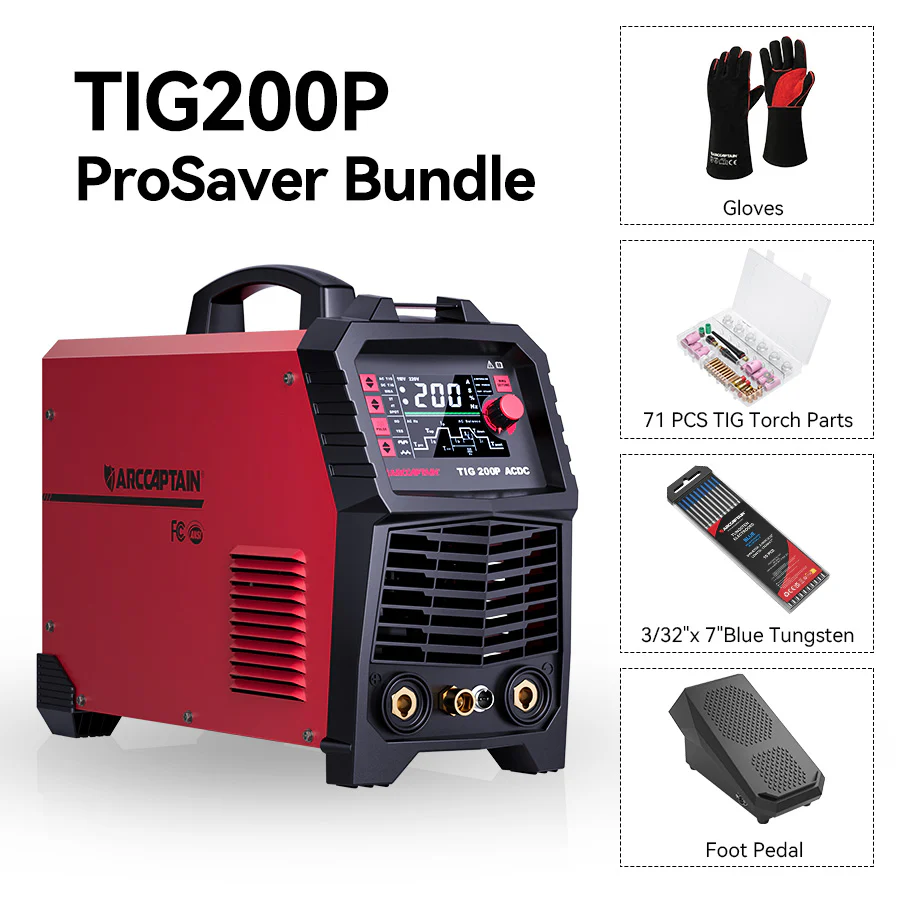

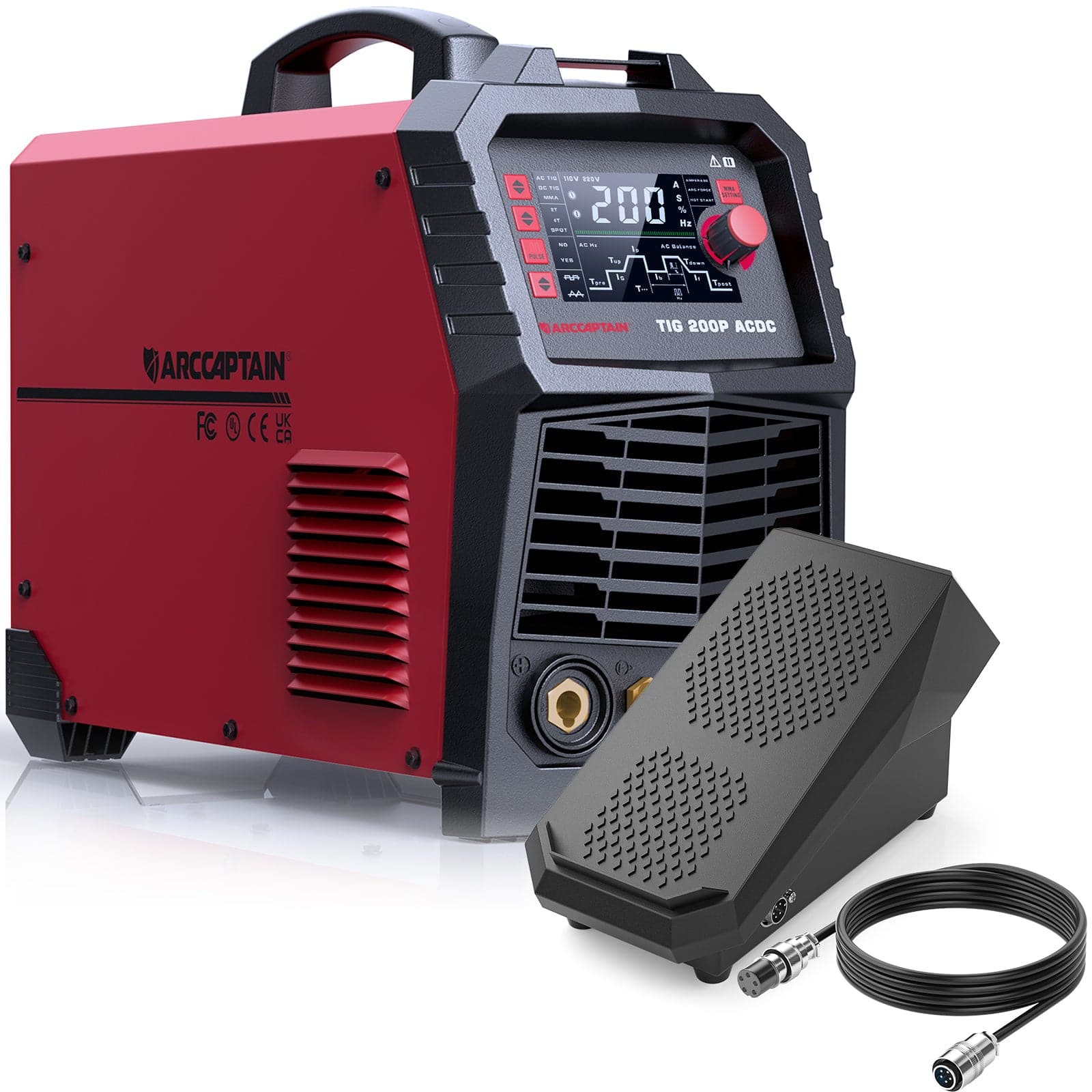

Arccaptain TIG200P AC DC Multi Process Pulse TIG Aluminum Welder
SAVE $250.00 (27% OFF)
FLASH SALE SAVINGS
Sale ends in:
00
Days
:
00
Hrs
:
00
Mins
:
00
Secs

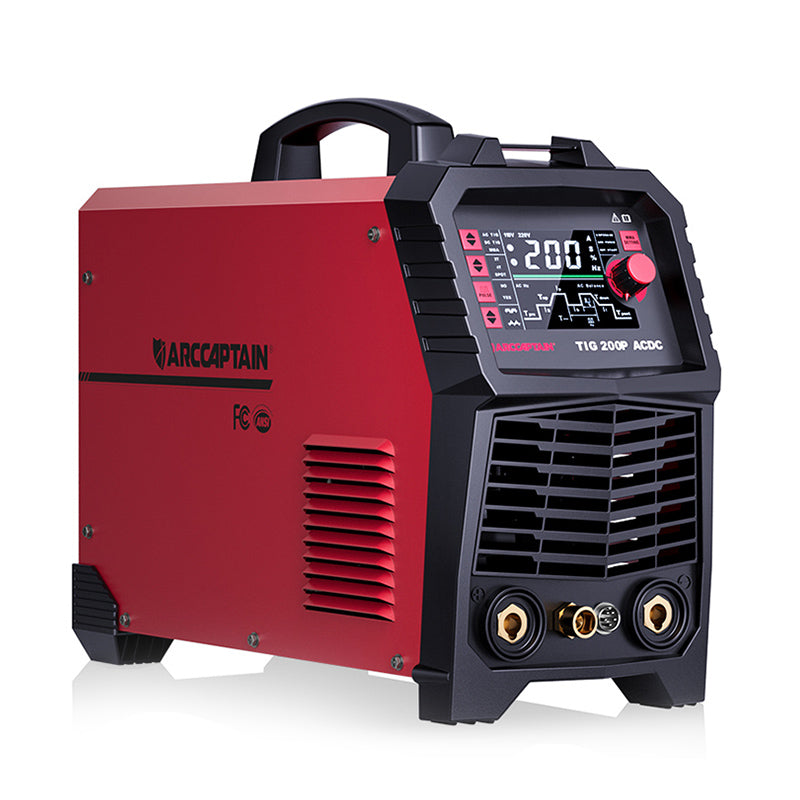

ARCCAPTAIN TIG200P AC/DC Pulse Welder – Precision Meets Power
Professional-Grade Versatility: Weld aluminum, steel, stainless steel, copper, and more with ease. The TIG200P supports AC/DC TIG (with adjustable square/triangle/pulse waveforms) and Stick welding up to 160A, perfect for delicate projects or heavy-duty repairs.

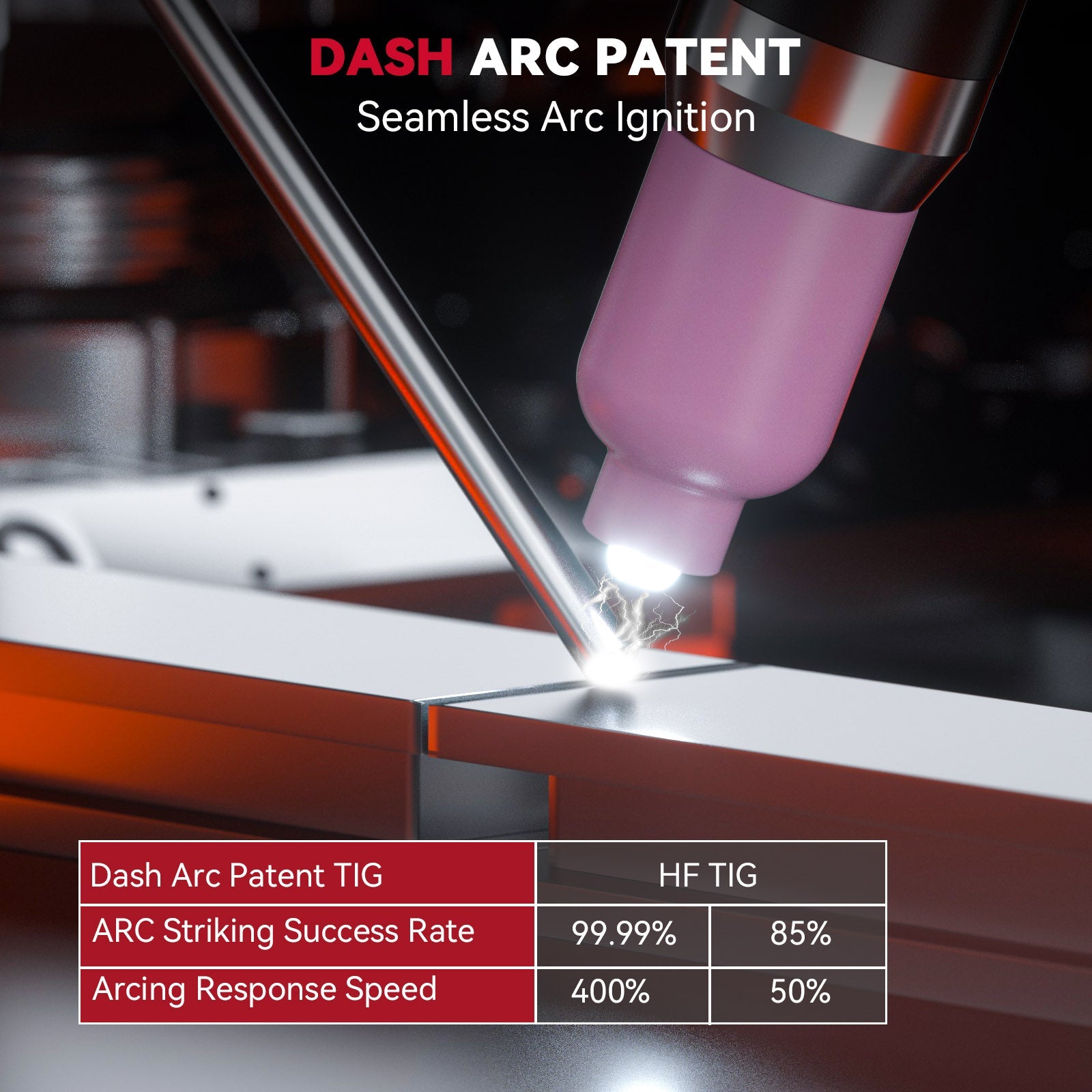

- Start welding in a flash: arc ignition speeds up to 5x faster (40ms vs. 200ms) with a 99.99% success rate
- Reduced tungsten damage and ultra: stable arc for cleaner, stronger welds
- Digital control ensures whisper: quiet operation and consistent performance

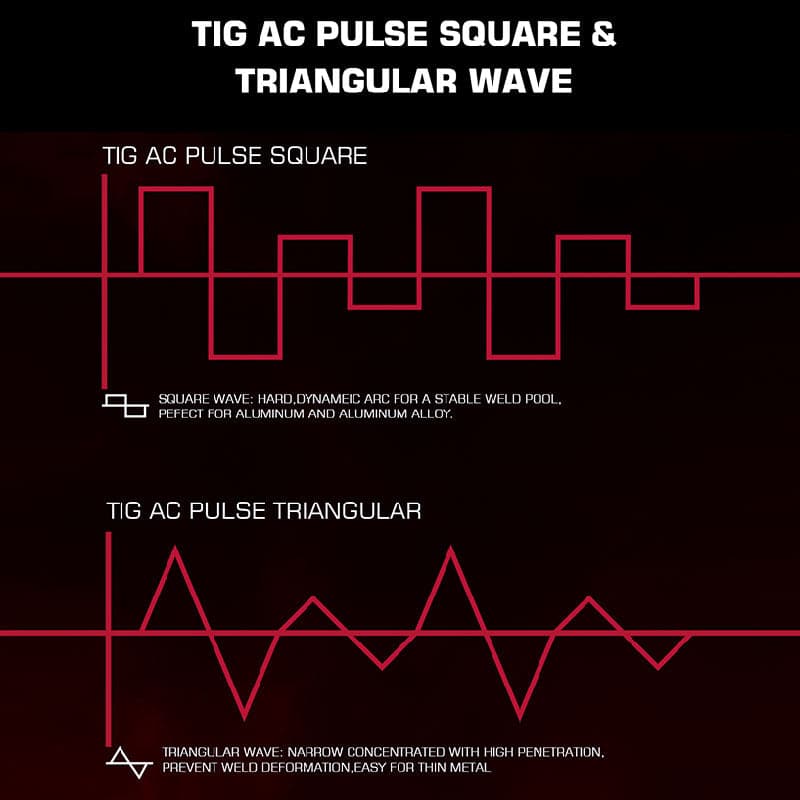

Smart Waveforms for Flawless Results

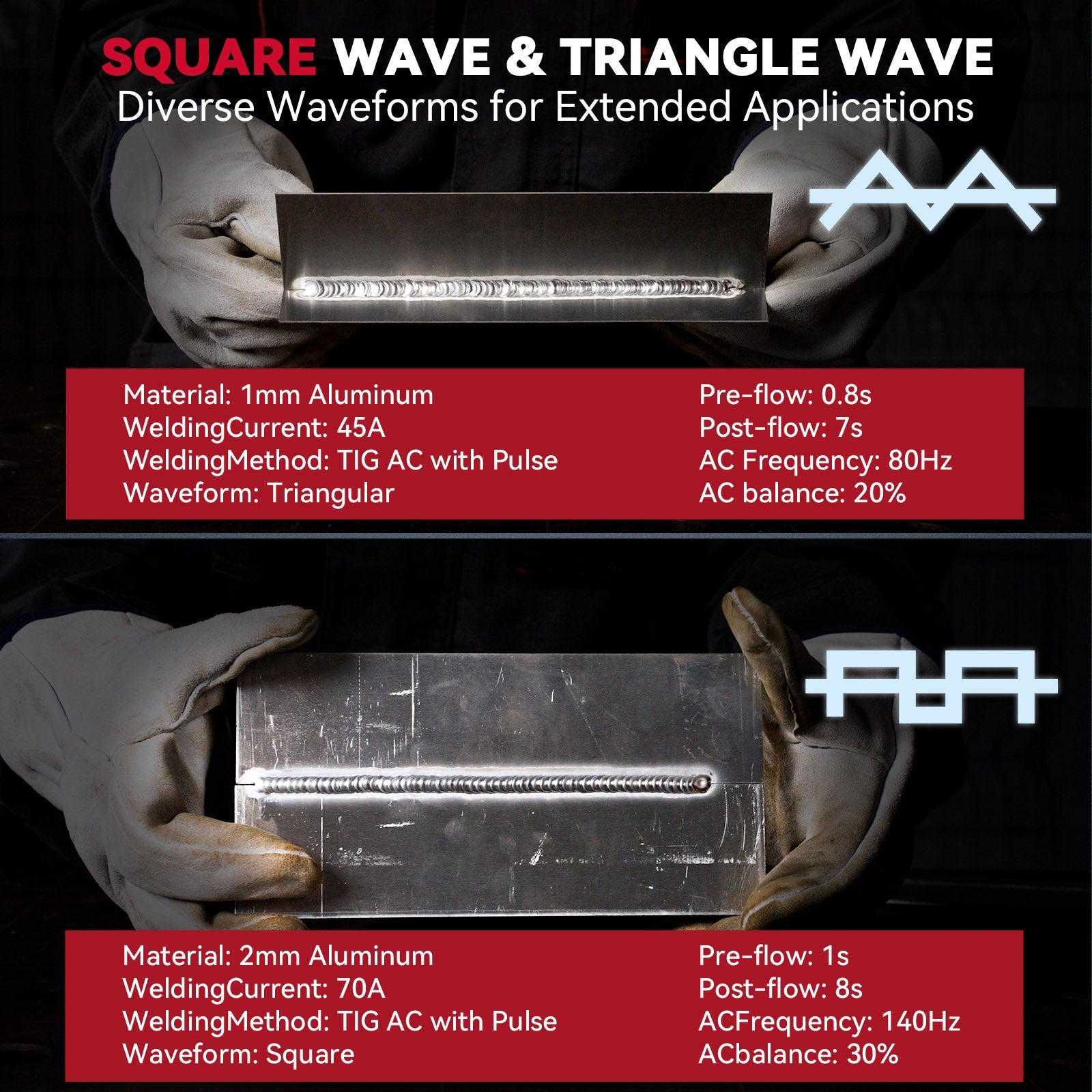

- Pulse/Square/Triangle modes prevent burn-through, minimize warping, and create pro-quality bead finishes
- Square wave AC crushes aluminum oxide for cleaner welds and better arc control
Built for Real-World Convenience

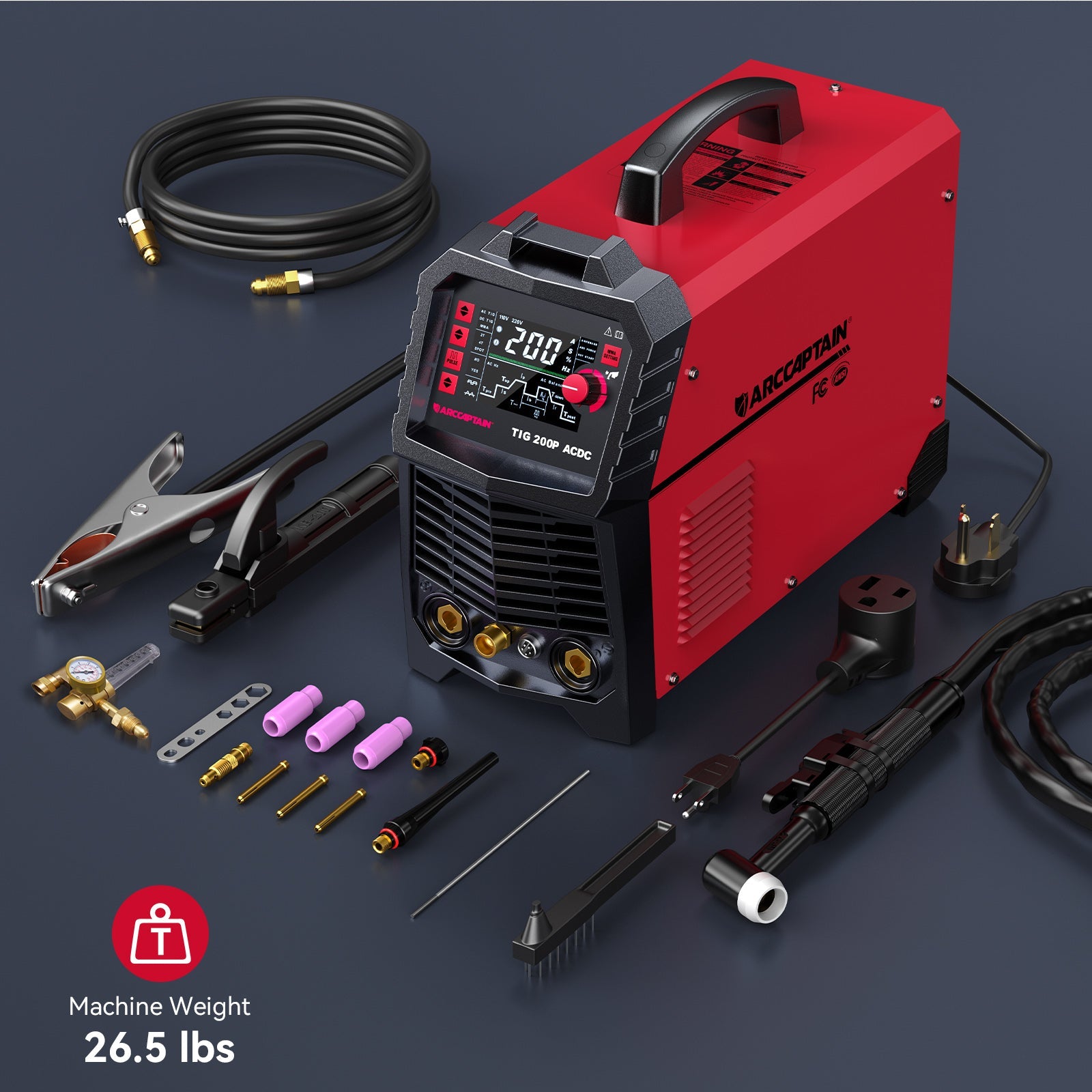

- Lightweight & portable: Just 26.5 lbs (12 kg) for jobsite mobility

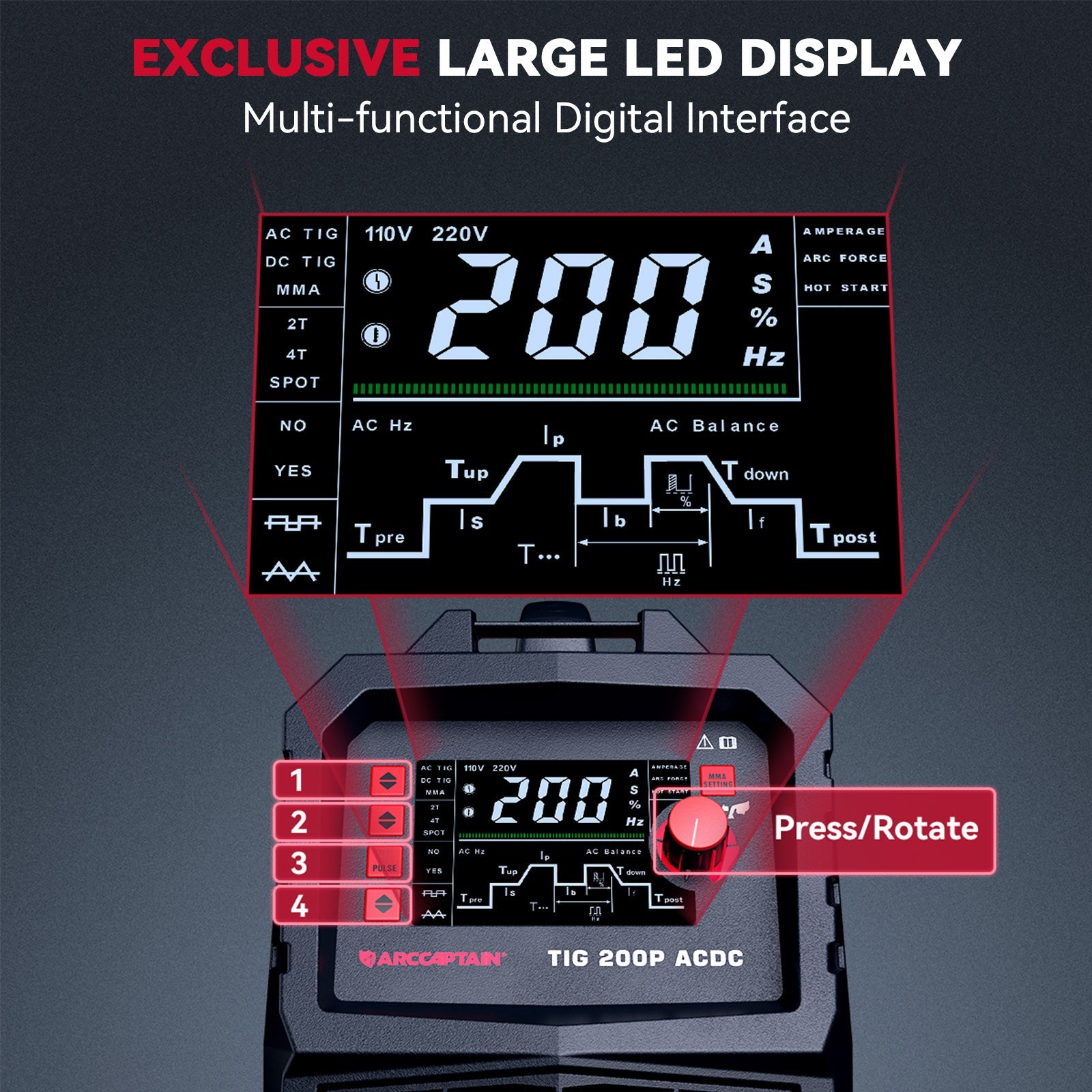

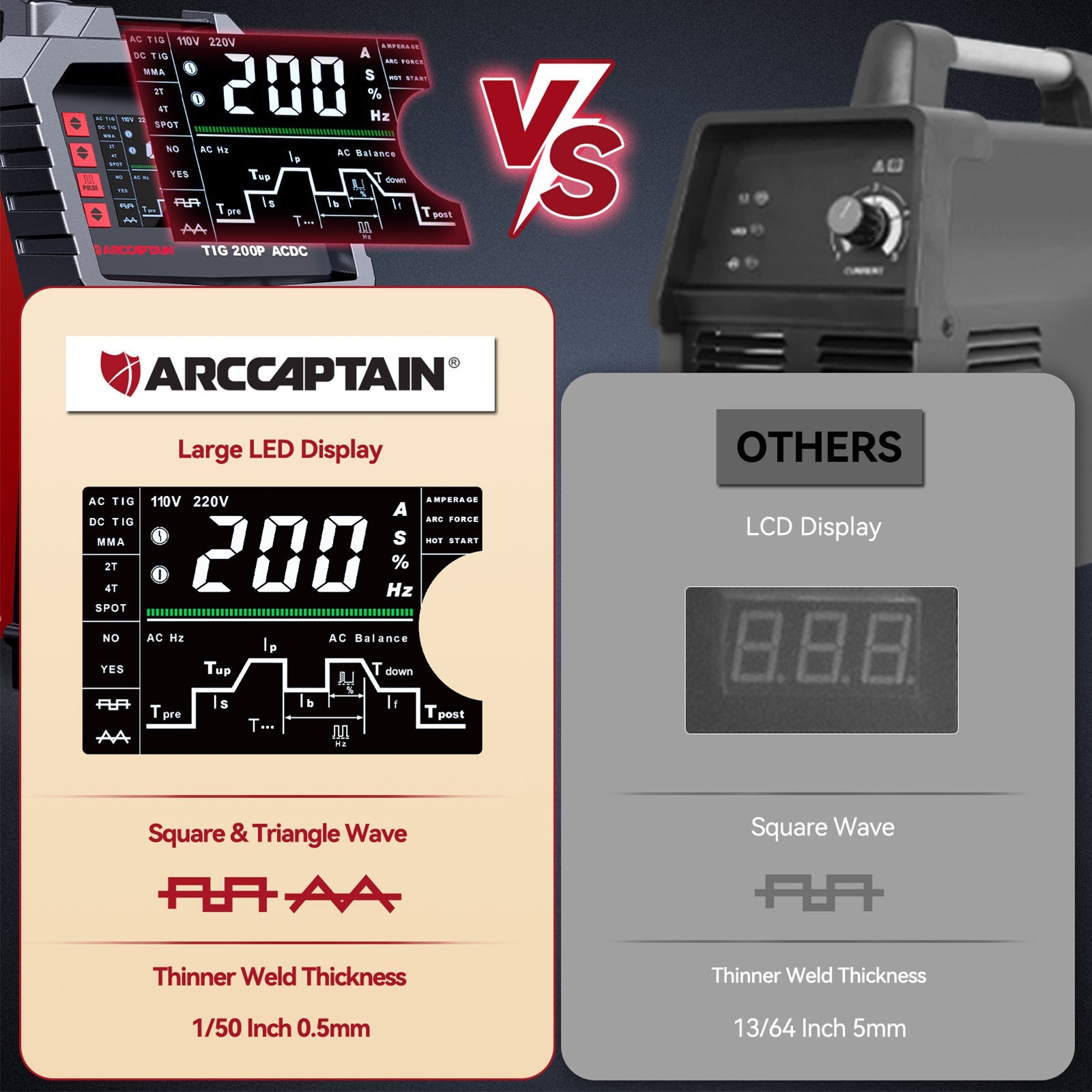

- Large LED display with intuitive controls: Adjust pre-flow, slope timing, crater fill, and more in seconds

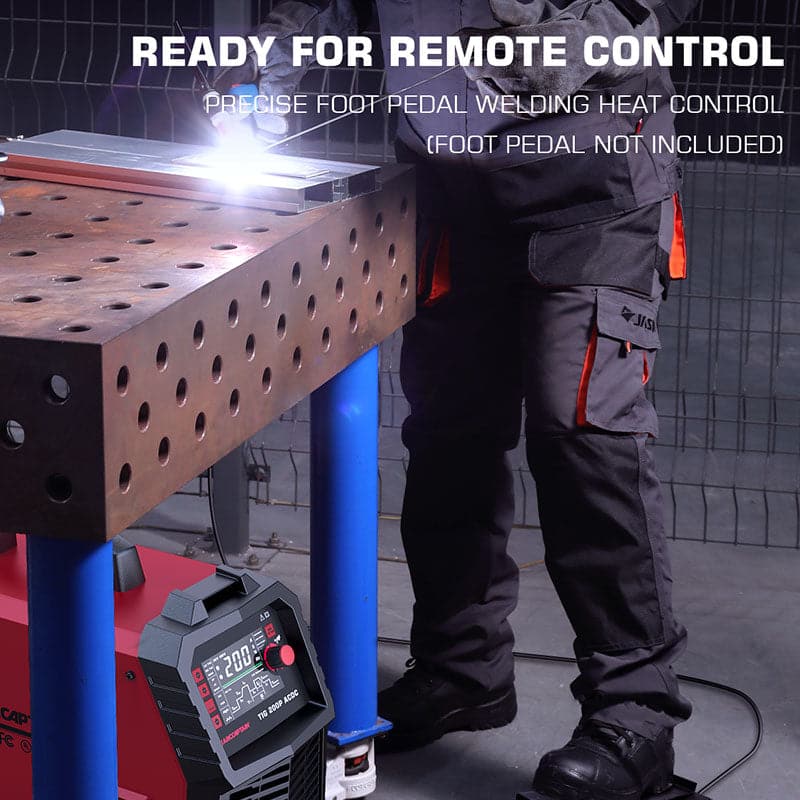

- Flexible control options: Use the handheld torch (2T/4T/spot modes) or add a foot pedal (sold separately)
Safety You Can Trust

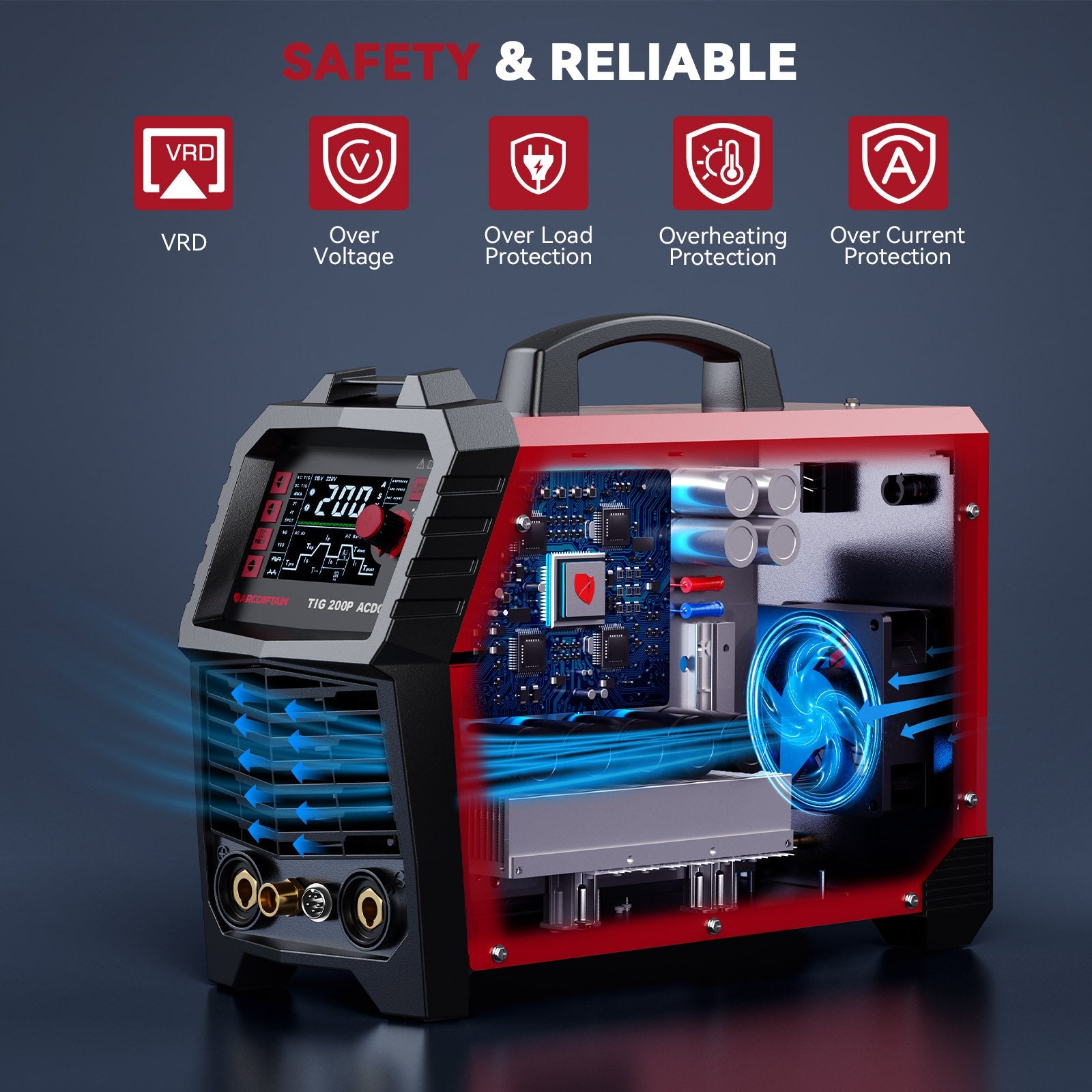

Auto-shutdown protection against overheating, voltage spikes, and overloads. VRD (Voltage Reduction Device) keeps you safe during electrode changes.
| Project Name | Unit | Value | ||
| Power voltage | VAC | AC110V±15% AC220V±15% | | |
| Input frequency | Hz | 50 | ||
| Rated input current | A | 33@TIG 35@MMA | ||
| Capacity of power supply | KVA | 6.0@TIG 7.5@MMA | ||
| Output current range (TIG) | A | 10~120(110 v) 10~200 (220v) | | |
| Output current range (MMA) | A | 10~110(110v) 10~160(220v) | | |
| Arc force range | A | 0~40 | ||
| Hot start current range | A | 0~80 | ||
| No-load voltage | V | 60 | ||
| Rated working voltage | V | 18@TIG 26.4@MMA | ||
| AC output frequency | Hz | 20~250 | ||
| AC balance | % | 20~60 | ||
| Background level | A | 10~200 | ||
| Pulse frequency | Hz | 0.5~200 (DC) 0.5~25(AC) | ||
| Pulse duty factor | % | 5~95 | ||
| Pre-flow time | S | 0~5 | ||
| Post-flow time | S | 0~15 | ||
| Rising time | S | 0~15 | ||
| Fall time | S | 0~15 | ||
| Remote control | - | Yes | ||
| Arc start mode | - | HF arc starter | ||
| Efficiency (%) | % | 80 | ||
| Duty cycle (%) | % | TIG: 200@25% - MMA: 160@25% | ||
| Power factor | - | 0.70 | ||
| Type of cooling | - | Air cooled | ||
| Working temperature range | °C | -10~+40 | ||
| Storage temperature range | °C | -25~+55 | ||
| Protection class | - | IP21S | ||
| Insulation class | - | B | ||
Is Welding Too Hard to Learn? Not Anymore!
Welding used to be tough and risky, but with the Arccaptain MIG205MP, it's now easy. This app-controlled, multi-functional welder and cutter is perfect for DIY, workshops, and industrial use. With the app, you can easily adjust settings remotely, giving you full control from your phone. Plus, you can save and recall preset scenes anytime, ensuring your settings are always ready. No more manual tweaks—just tap, set, and weld! Let’s keep the welding tradition alive!
Control Your Welder Like Never Before
Break free with the ARCCAPTAIN MIG205MP! Its large screen and SYN control make welding effortless, while the mobile app empowers you to fine-tune parameters and save your favorite settings for future use. With versatile modes and precision, it’s perfect for all skill levels.
App-Controlled for Convenient Parameter Adjustments
- Easily Adjust Settings Remotely with the App
- Save and Recall Preset Scenes Anytime
- Adjust Settings from Anywhere
All-in-one Multi-Process Welder User-Friendly and Powerful
Master Every Job with Versatile Welding & Cutting Modes
Combining MIG, Pulse MIG, TIG Pulse, MMA, Plasma Cutting, Flux-Cored, and Cleaning in one compact machine, the ARCCAPTAIN MIG205MP offers high-frequency TIG start, foot-pedal control, and efficient cooling for precision and reliability on every job.
Precise Welding, Perfect Result
A Welder for All Your Everyday Tasks
MIG, Pulsed MIG, Gasless MIG & More in One!
MIG205MP offers easy welding with MIG, Pulsed MIG, Gasless MIG, and more. It delivers precise, powerful results for both beginners and professionals, perfect for any welding job.
TIG Welding
Master precision welding with high-frequency TIG start and foot-pedal control. Independent cooling ducts guarantee reliable, long-lasting performance for every job, even under intense use.
Plasma Cutting
Easily cuts through stainless steel, aluminum, copper, and more, providing precise cuts for any project.
MMA Welding
Achieve flawless Stick welding with the ARCCAPTAIN MIG205MP! Its Hot Start and Arc Force provide smooth starts and stable arcs, making it perfect for repairs and DIY projects.
Cleaning Function
It doesn’t just weld and cut—it also features a cleaning function for residue-free finishes and flawless results. For optimal performance, use it with the dedicated welding cleaning agent on every project.
