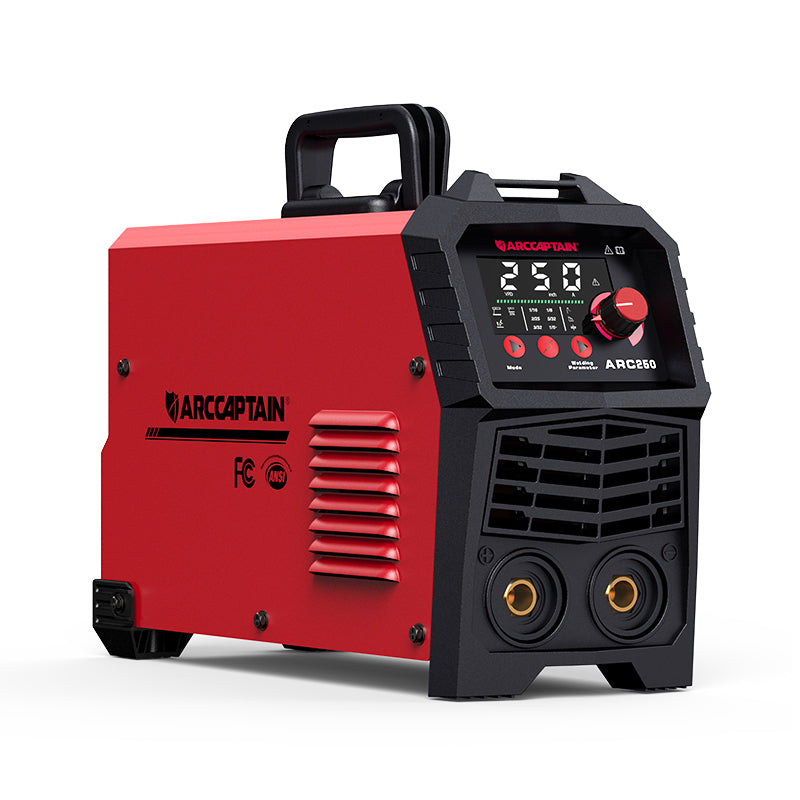

Arccaptain ARC250 250A 230V Professional Stick Welder
SAVE $50.00 (17% OFF)
FLASH SALE SAVINGS
Sale ends in:
00
Days
:
00
Hrs
:
00
Mins
:
00
Secs
1 / 4
1 / 4
250 Amps Output ARC Welder
E6011 Ready — 1/16" to 5/8" Steel — 60% Duty Cycle
250A rated output on a standard 230V single-phase circuit. Runs E6011 cellulosic rods. Welds sheet metal through structural plate. Built for pipeline work, overhead joints, automotive repair, and any job site without three-phase power.
250A
True Output
230V
Single Phase
60%
Duty Cycle
5/8"
Max Thickness
Four Reasons It Handles What Others Won't
Power & Input
250A
Output on 230V Single Phase
Delivers 250 amps of rated output on single-phase 230V circuits found in standard workshops, garages, and light industrial bays. No three-phase service required.
Electrode Support
E6011
Cellulosic Rod Ready — All Positions
Built for pipeline work, outdoor repair, and welding on rusty, painted, or coated steel. Runs on AC, digs deep, handles surface contamination — open-root pipe passes and vertical-up joints, every time.
Sustained Performance
60%
High Duty Cycle for Production Welding
60% duty cycle at full 250A output — six minutes of arc time per ten-minute window at maximum power. Built for jobs where downtime costs money.
Material Range
1/16"–5/8"
Sheet Metal Through Structural Plate
From 1/16" (2mm) sheet metal to 5/8" (16mm) structural plate. One machine covers every job on site.
Built for Every Place You Actually Weld
01
Overhead & Structural Work
250A output and all-position E6011 support handle overhead joints, beam connections, and column base plates where other machines lose arc stability.
02
Pipeline Installation
Purpose-built for E6011 cellulosic rods on AC — deep penetration and fast-freeze arc control that pipeline welding demands in every position.
03
Automotive Repair
Welds auto body sheet metal and frame sections at the low end of the 2–16mm range without burning through. Low-spatter E6013 keeps finish quality high.
04
Maintenance & Repair Ops
60% duty cycle and IGBT stability deliver consistent results across long sessions on standard 230V single-phase plant power.
05
Decorative Metalwork
Soft-arc E6013 at lower current handles gates, railings, and architectural metalwork where bead appearance matters as much as joint strength.
06
Metal Fabrication
Full 2–16mm capacity, E6010/11/13/7018 compatibility, and 60% production duty cycle — one machine for everything that comes through the door.
07
Construction Sites
230V single-phase on standard US site power. Structural steel up to 5/8" — no three-phase service required.
08
Field & Outdoor Repair
Stick welding outperforms MIG and TIG in wind and humidity. E6011/E6010 rod support for real outdoor conditions, not just clean-bench environments.

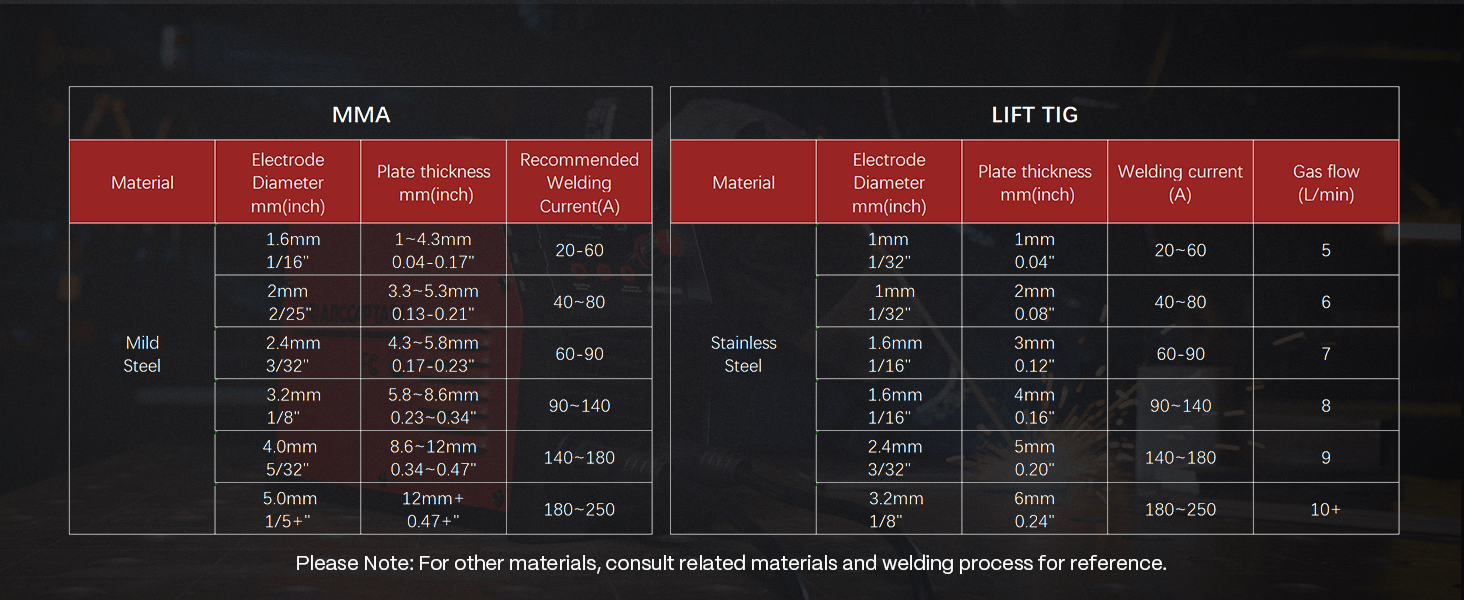

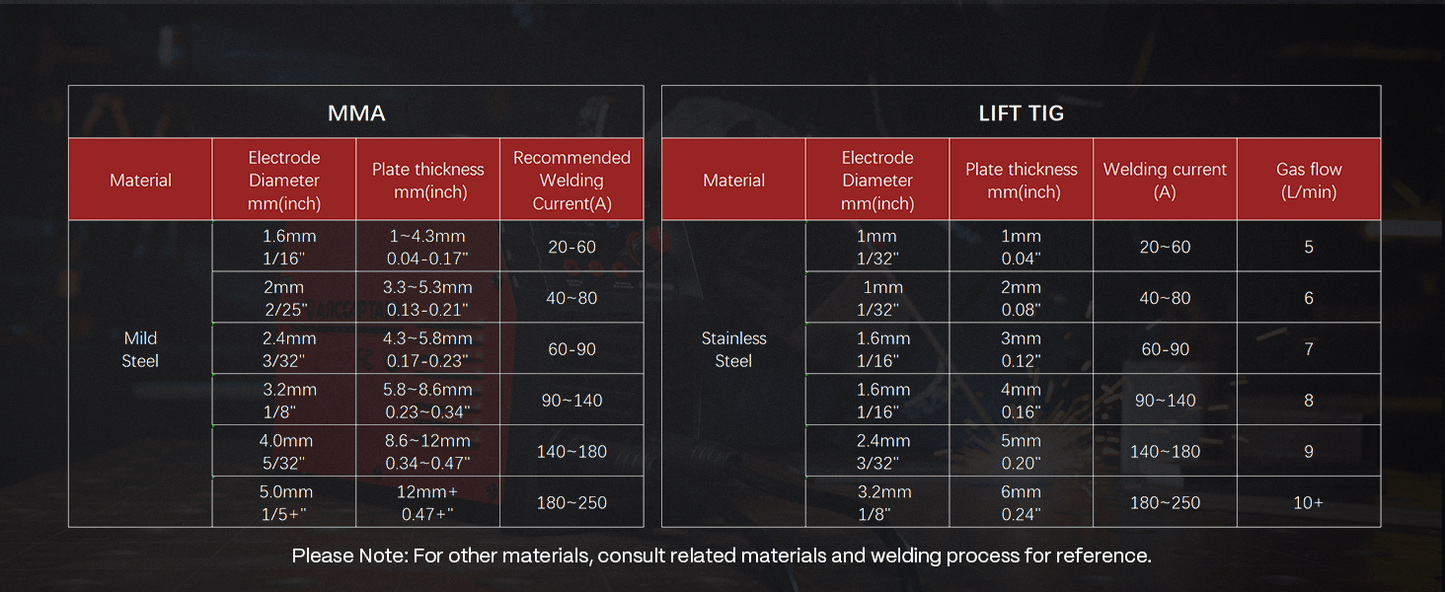

Welding Rod Guide
Tested and optimized for the four most common electrodes used by American fabricators, pipefitters, and maintenance welders.
| Rod | Best For | Arc Character | Position | Support |
|---|---|---|---|---|
| E6010 | Pipe, structural, dirty/rusty steel | Deep penetrating, fast-freeze | All positions | Optimized |
| E6011 | AC or DC, outdoor, coated steel | Moderate penetration, flexible | All positions | Optimized |
| E6013 | Sheet metal, light fab, beginners | Soft arc, easy slag removal | Flat, horizontal | Optimized |
| E7018 | Structural steel, low-hydrogen, code work | Smooth, low spatter, strong bead | All positions | Optimized |
Material Compatibility Handles mild steel, stainless steel, and other weldable alloys in MMA mode. E6011 cellulosic electrodes fully supported for pipeline, overhead, and outdoor field applications.

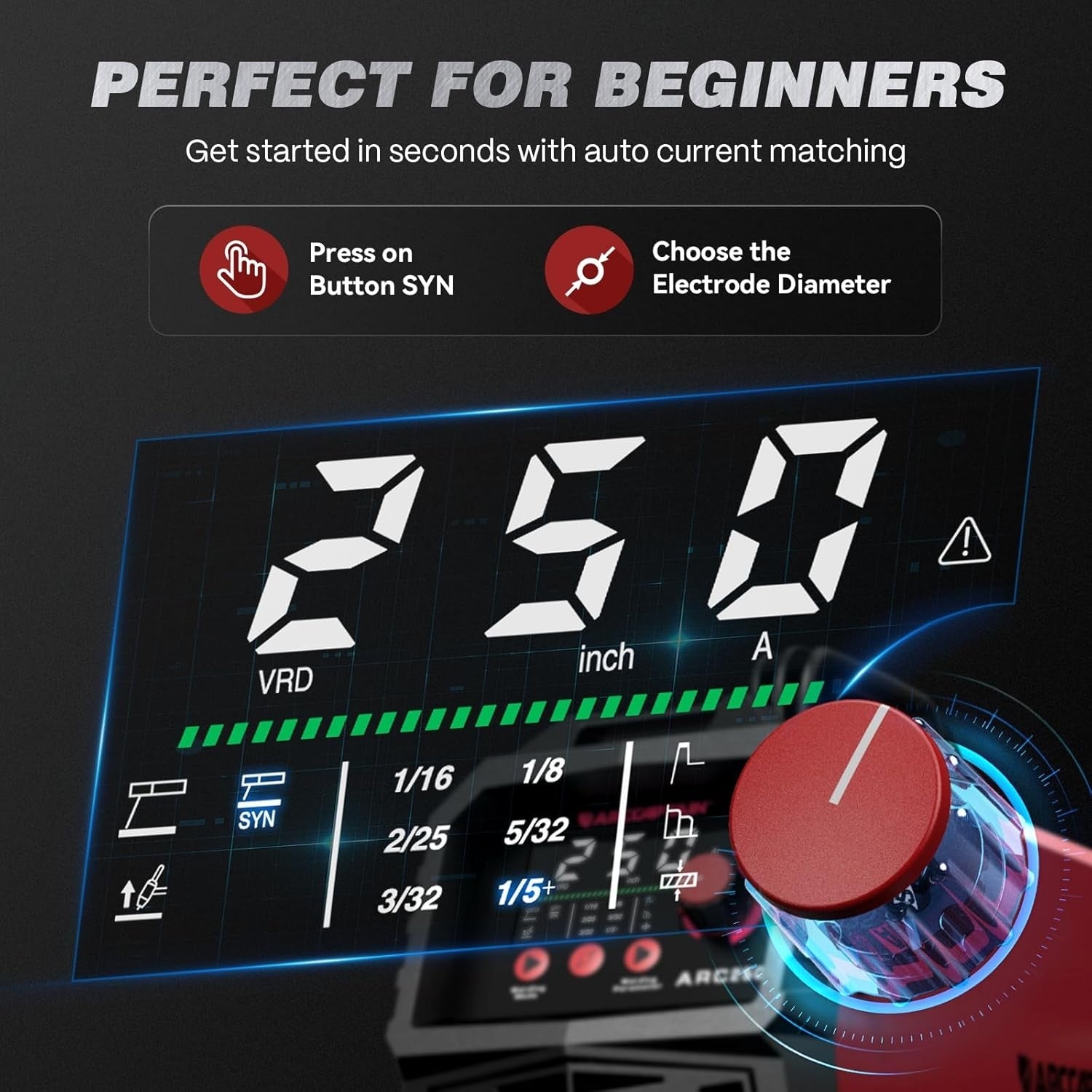

SYN Smart Control — Setup in Seconds
Select rod diameter or plate thickness — the machine sets parameters automatically. Override manually whenever you need full control.
Auto Mode
Select Rod or Thickness — Done
SYN calculates and sets the correct current and voltage automatically. No burned rods, no porosity. Cuts setup time between rod changes on repetitive joints.
Manual Override
Full Parameter Control
Complete control from 20–250A in fine increments. Dial a soft arc for thin sheet metal or an aggressive arc for heavy plate — at a glance, without lifting your helmet.
IGBT Inverter Technology Advanced MCU digital control delivers consistent arc stability, reduced spatter, and clean bead formation from first strike to last inch of rod.

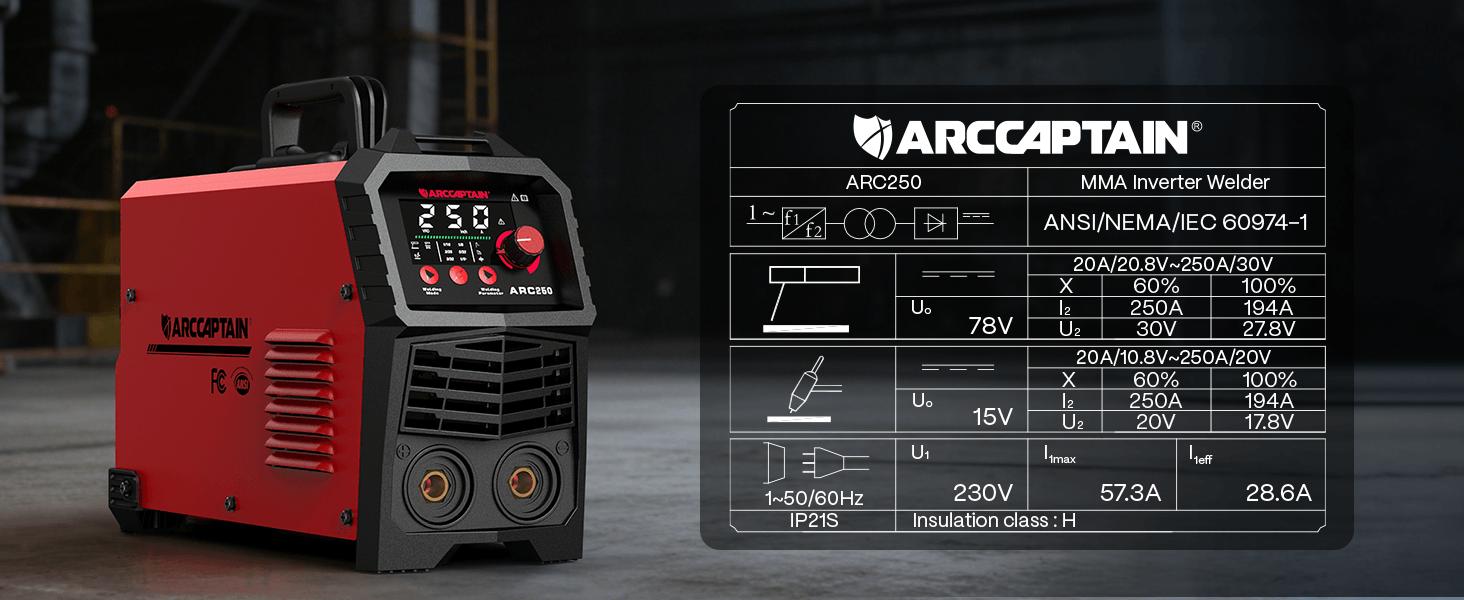

Full Spec Sheet
MMA Current
20–250A
Rated adjustable output
Input Power
230V Single Phase
Standard US workshop supply
Duty Cycle
60%
At full 250A output
Plate Capacity
1/16" to 5/8"
2mm to 16mm steel
Electrode Types
E6010/11/13/7018
E6011 cellulosic optimized
SYN Input
Rod + Thickness
Auto parameter matching
Process
MMA Stick
Light industrial grade
Inverter
IGBT
MCU digital control
Protection
Full Suite
OC / OV / OT / OL
This Welder vs Standard Stick Welders
| Feature | Standard Welder | This Welder |
|---|---|---|
| 250A true rated output | Varies | Yes — 20–250A |
| 230V single-phase input | Varies | Yes — standard US |
| 60% duty cycle at full output | — | Yes — production rated |
| E6011 cellulosic rod support | Varies | Yes — optimized |
| Welds 2–16mm full steel range | Partial | Yes — full range |
| SYN auto parameter matching | — | Yes — rod + thickness |
| IGBT inverter + MCU control | Varies | Yes — standard |
| Full protection OC/OV/OT/OL | — | Yes — built in |

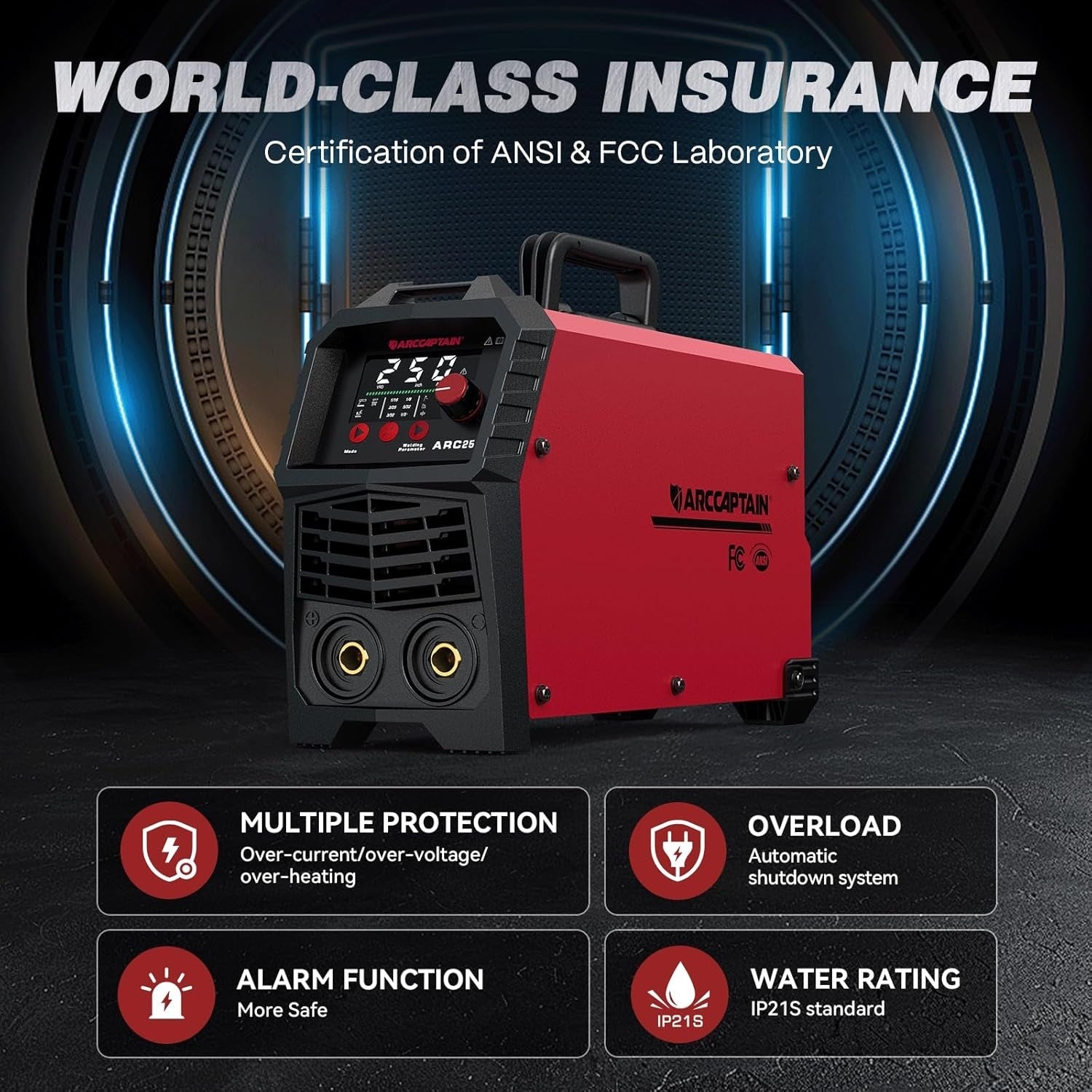

Built-In Protection Every Session
Four independent protection systems run continuously — so you focus on the weld, not the machine.
- Over-current protection — shuts output if current exceeds safe operating limits
- Over-voltage protection — guards internal components from input voltage spikes
- Over-heat protection — thermal cutout with automatic cooling fan prevents heat damage
- Overload protection — prevents sustained operation beyond the machine's rated capacity
230V Single Phase — Light Industrial Grade
250 Amps That Goes Where the Job Does
E6011 cellulosic rod support. 60% duty cycle at full output. 1/16"–5/8" steel capacity. Pipeline, overhead, automotive, construction — one machine, every job.
250A True Output 230V Single Phase E6011 Cellulosic Ready 60% Duty Cycle 2–16mm Steel
250A
True Output
