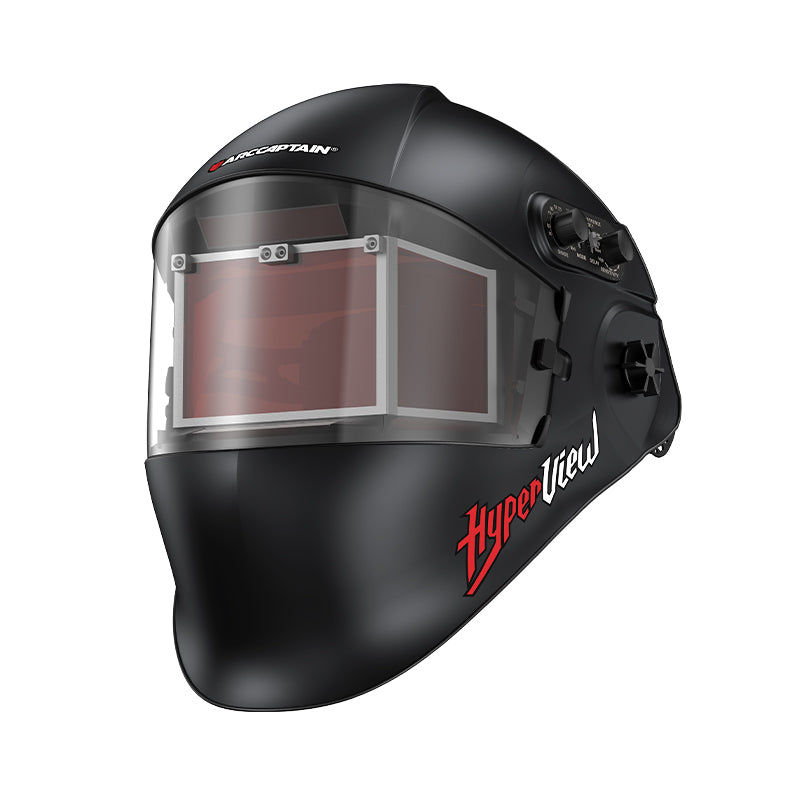

Hyperview X400 Panoramic Auto Darkening Welding Helmet Black

$119.99 $99.99
SAVE $20.00 (16% OFF)
FLASH SALE SAVINGS
Sale ends in:
00 Days
:
00 Hrs
:
00 Mins
:
00 Secs
🔒 Secure checkout 📦 Free shipping

Features:

  • Ultimate Eye & Face Protection
    Safeguard your eyes and face with DIN16 UV/IR protection and a versatile DIN4–8 / DIN9–13 shade range, perfect for MIG, TIG, and stick welding. True-color technology ensures accurate weld visibility without eye strain.

  • Wide Panoramic View for Precision Welding
    The expansive 8.19 × 2.87 in (208 × 73 mm) viewing area, along with main and side filters, delivers a full panoramic view, letting you track your work accurately and weld with confidence.

  • Ultra-Fast Auto-Darkening & Reliable Sensors
    Featuring 4 sensitive arc sensors and 1/30,000 sec switching time, the helmet instantly darkens when welding starts, eliminating flicker and delays for smooth, uninterrupted performance.

  • Fully Adjustable for Any Task
    Customize sensitivity and delay (0.2–1.0 sec) with the external control knob. Switch effortlessly between welding and grinding modes, tailoring the helmet to your workflow.

  • Lightweight, Durable & Power-Ready

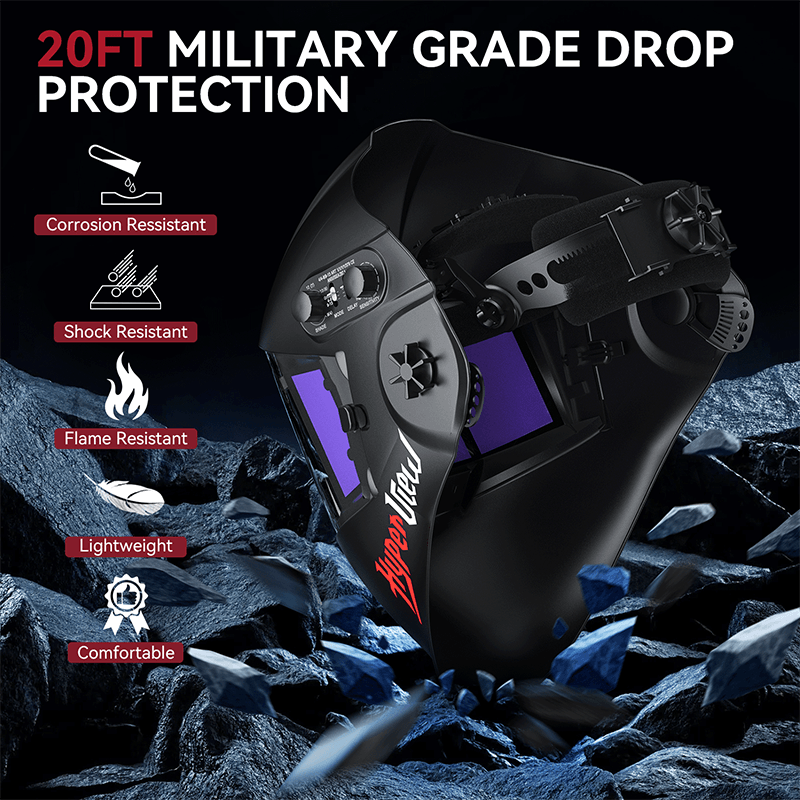

    Built with high-impact nylon and weighing only 1.43 lbs (650 g), this helmet is comfortable for long sessions. Powered by solar cells + built-in lithium battery, it’s always ready for the job without frequent battery changes.

Technical Specifications:

Item Specification
Viewing Area 8.19 × 2.87 in (208 × 73 mm)
Arc Sensors 4
Filter Size

Main Filter: 4.25 × 2.87 in (108 × 73 mm);

Two Side Filters: 1.97 × 2.87 in (50 × 73 mm)
UV/IR Protection Up to DIN16
Light State DIN4
Variable Shade Range DIN4–8 / DIN9–13
Power Supply Solar cells + Built-in lithium battery
Power On/Off Fully automatic
Sensitivity Adjustment External control knob
Modes Welding / Grinding
Switching Time (Light to Dark) 1/30,000 sec
Delay Time (Dark to Light) 0.20 – 1.0 sec (Short / Medium / Long adjustable)
Shell Material High-impact Nylon
Total Weight 1.43 lbs (650 g)
View full details
ARCFORGE Welding Equipment

Is Welding Too Hard to Learn? Not Anymore!

Welding used to be tough and risky, but with the Arccaptain MIG205MP, it's now easy. This app-controlled, multi-functional welder and cutter is perfect for DIY, workshops, and industrial use. With the app, you can easily adjust settings remotely, giving you full control from your phone. Plus, you can save and recall preset scenes anytime, ensuring your settings are always ready. No more manual tweaks—just tap, set, and weld! Let’s keep the welding tradition alive!

MIG205MP app-controlled welding machine

Control Your Welder Like Never Before

Break free with the ARCCAPTAIN MIG205MP! Its large screen and SYN control make welding effortless, while the mobile app empowers you to fine-tune parameters and save your favorite settings for future use. With versatile modes and precision, it’s perfect for all skill levels.

MIG205MP large digital control screen

Large Digital Screen Control with Easy SYN Mode

  • Effortless SYN Control
  • 10 Customizable Presets
  • Clear, Accurate Data Display
  • Safety Color Alerts
MIG205MP mobile application controls

App-Controlled for Convenient Parameter Adjustments

  • Easily Adjust Settings Remotely with the App
  • Save and Recall Preset Scenes Anytime
  • Adjust Settings from Anywhere
MIG205MP memory channels and saved welding presets
```

All-in-one Multi-Process Welder User-Friendly and Powerful

Master Every Job with Versatile Welding & Cutting Modes

Combining MIG, Pulse MIG, TIG Pulse, MMA, Plasma Cutting, Flux-Cored, and Cleaning in one compact machine, the ARCCAPTAIN MIG205MP offers high-frequency TIG start, foot-pedal control, and efficient cooling for precision and reliability on every job.

Precise Welding, Perfect Result

MIG Pulsed Welding
TIG Welding with Foot Pedal

A Welder for All Your Everyday Tasks

Applications of the MIG205MP

MIG, Pulsed MIG, Gasless MIG & More in One!

MIG205MP offers easy welding with MIG, Pulsed MIG, Gasless MIG, and more. It delivers precise, powerful results for both beginners and professionals, perfect for any welding job.

Button label

TIG Welding

Master precision welding with high-frequency TIG start and foot-pedal control. Independent cooling ducts guarantee reliable, long-lasting performance for every job, even under intense use.

Button label

Plasma Cutting

Easily cuts through stainless steel, aluminum, copper, and more, providing precise cuts for any project.

Button label

MMA Welding

Achieve flawless Stick welding with the ARCCAPTAIN MIG205MP! Its Hot Start and Arc Force provide smooth starts and stable arcs, making it perfect for repairs and DIY projects.

Button label

Cleaning Function

It doesn’t just weld and cut—it also features a cleaning function for residue-free finishes and flawless results. For optimal performance, use it with the dedicated welding cleaning agent on every project.

Button label
