Arccaptain
Oxygen Acetylene Cutting Welding Torch Kit with Hose AR-CT120Pro
SAVE $20.00 (11% OFF)
FLASH SALE SAVINGS
Sale ends in:
00
Days
:
00
Hrs
:
00
Mins
:
00
Secs
Features：
High-Quality Cutting Torch Kit – Medium Duty
The ARCCAPTAIN oxy-acetylene torch is built with premium components including solid brass valves, stainless steel pressure handle, integrated control knobs, and stainless steel valve stems for superior durability and precise control. Equipped with the 1-101 cutting tip, it can cut up to 4.7" (120mm) carbon steel and weld up to 2" (52mm). Ideal for cutting, welding, brazing, and soldering tasks, making it perfect for DIYers, workshops, and farm repairs.
Superior Safety and Leak Prevention

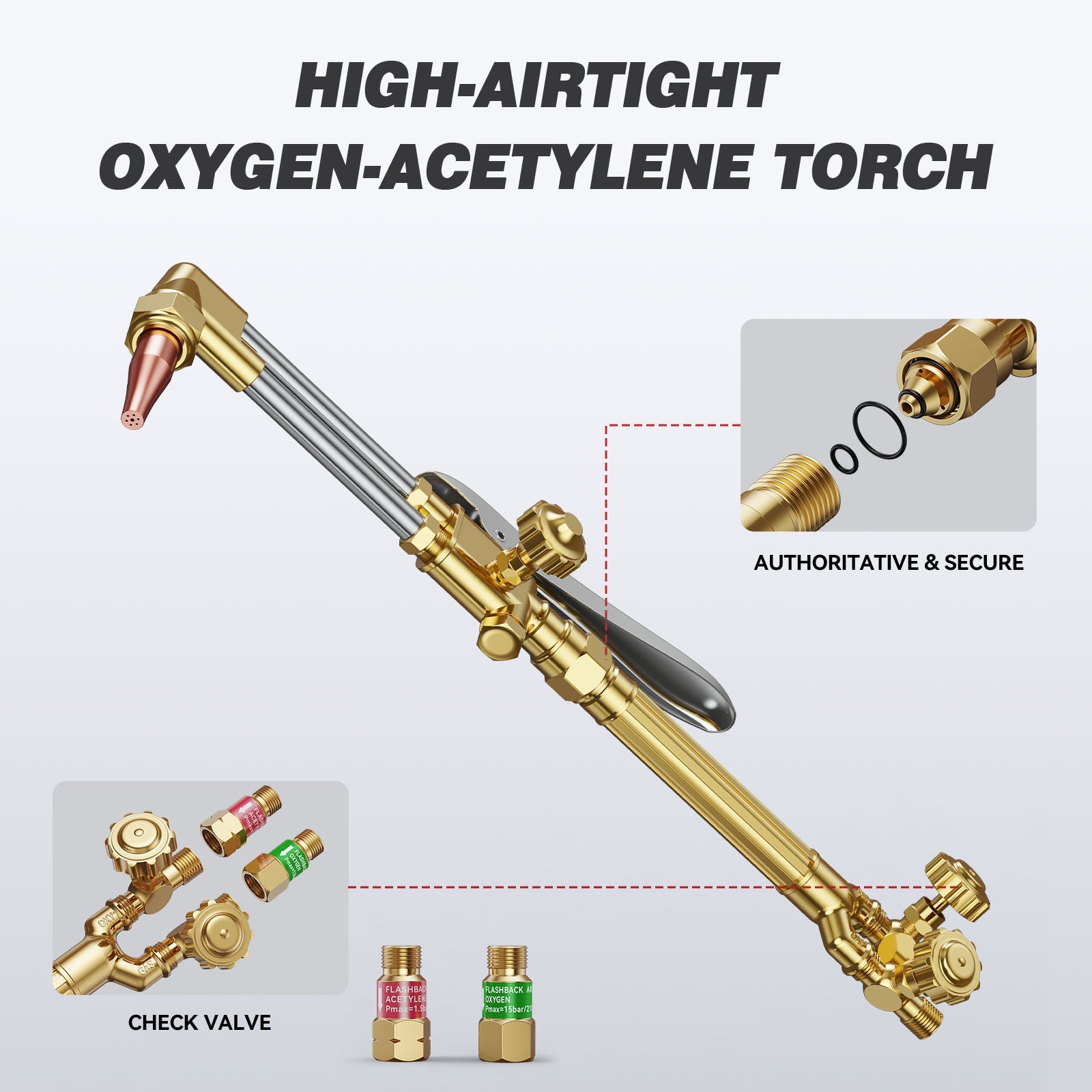

The torch handle features built-in flashback arrestors and a 90° cutting head to prevent dangerous flame backflow and flashback. All connections utilize dual O-ring seals, providing double protection against leaks and ensuring maximum safety and reliable gas tightness during every operation.
Durable and Heat-Resistant Construction
Designed with V-shaped dual stainless steel tubes for enhanced pressure resistance and high-temperature endurance. The copper cutting tip resists heat damage and prevents carbon buildup for consistent cutting performance. A solid brass handle with silicone-sealed O-rings enhances durability and abuse resistance.
Multi-Gas Compatibility and Easy Operation

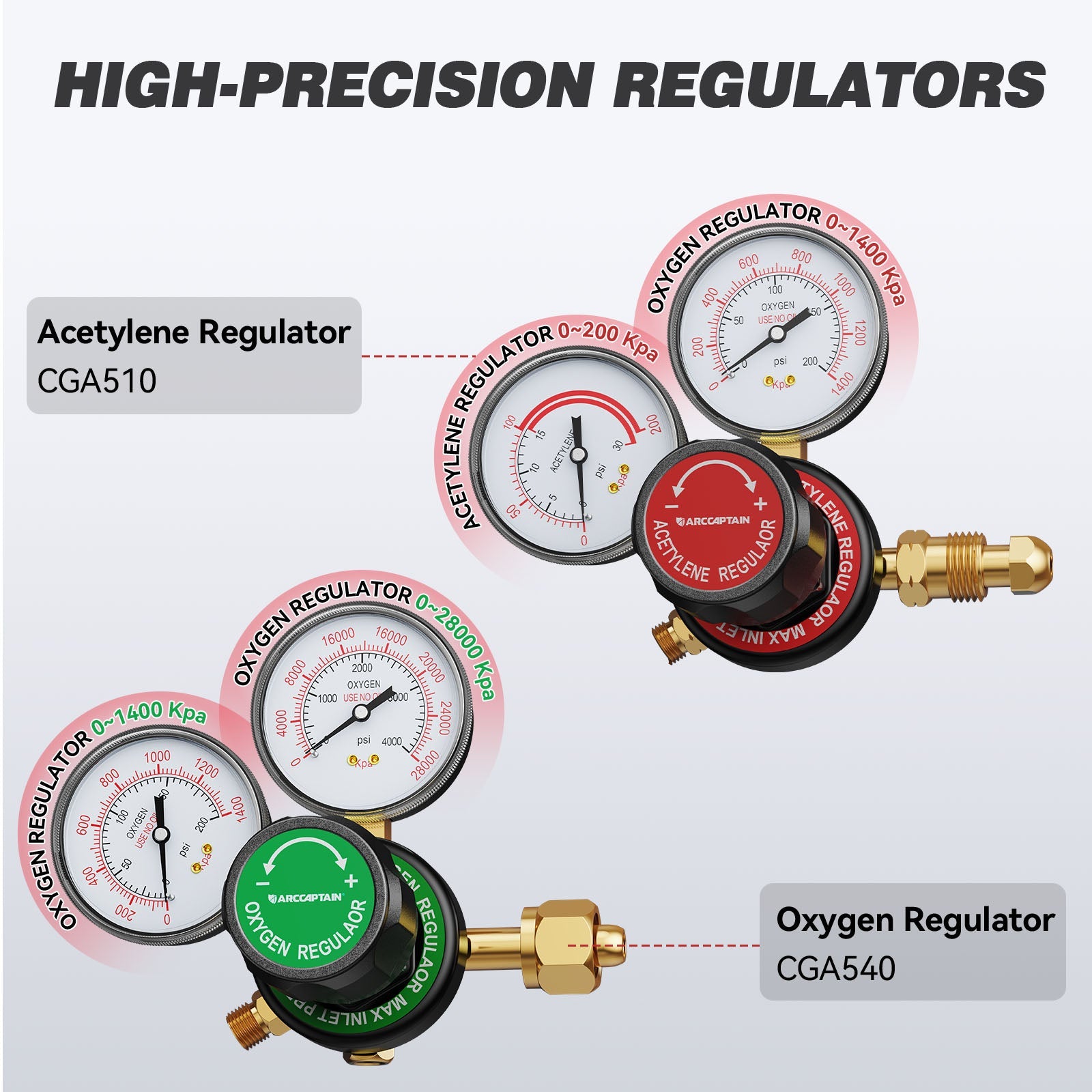

Supports acetylene, propane, and natural gas with a simple tip change. The modular design allows for easy tip installation and maintenance. Connect the gas cylinders (CGA-510 for acetylene, CGA-540 for oxygen), adjust PSI as needed, ignite, and set the flame to neutral for precise cutting and welding. The kit comes with CA1350 cutting attachments and 3-101 series acetylene cutting tips for immediate use.
Complete All-in-One Kit – Ready to Use

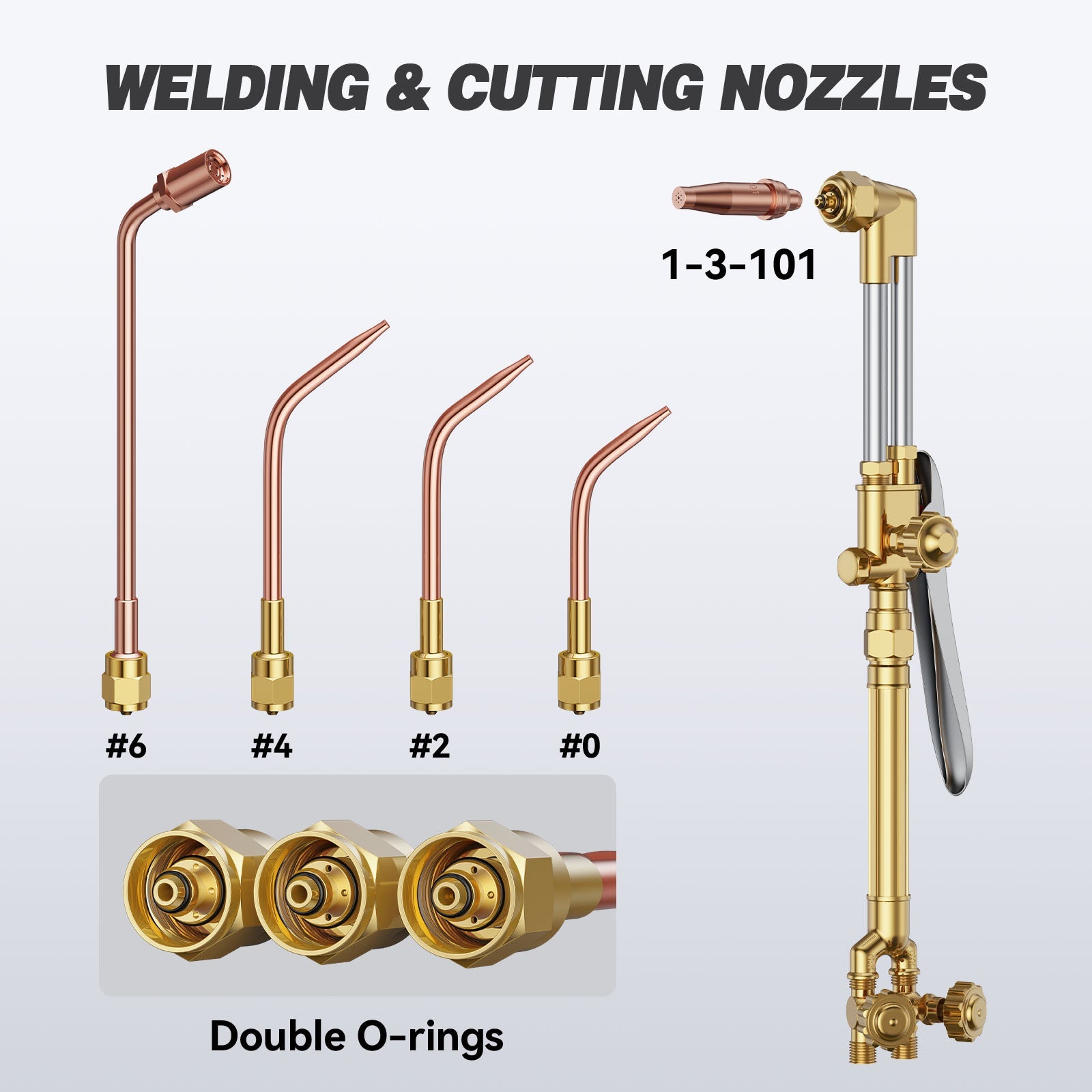

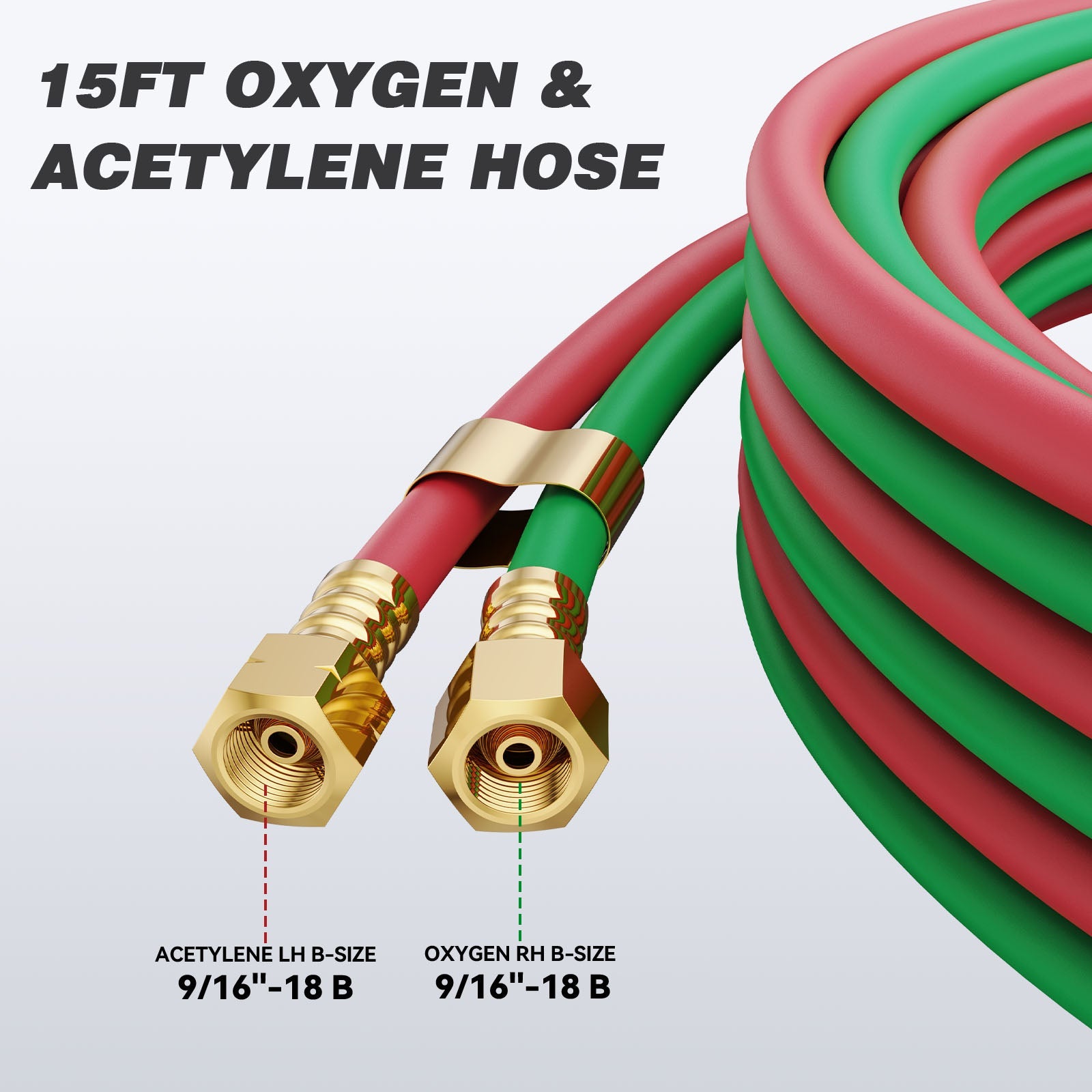

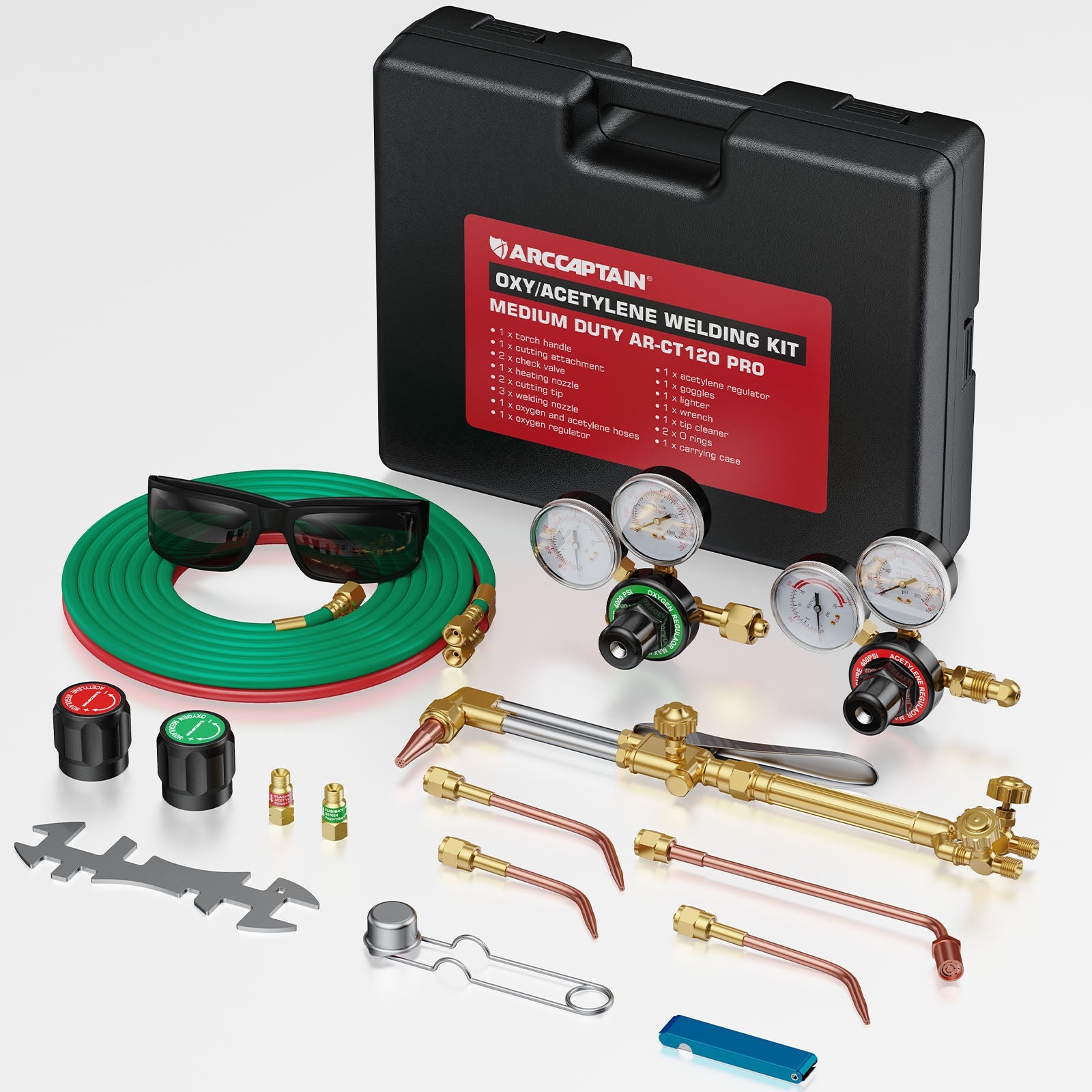

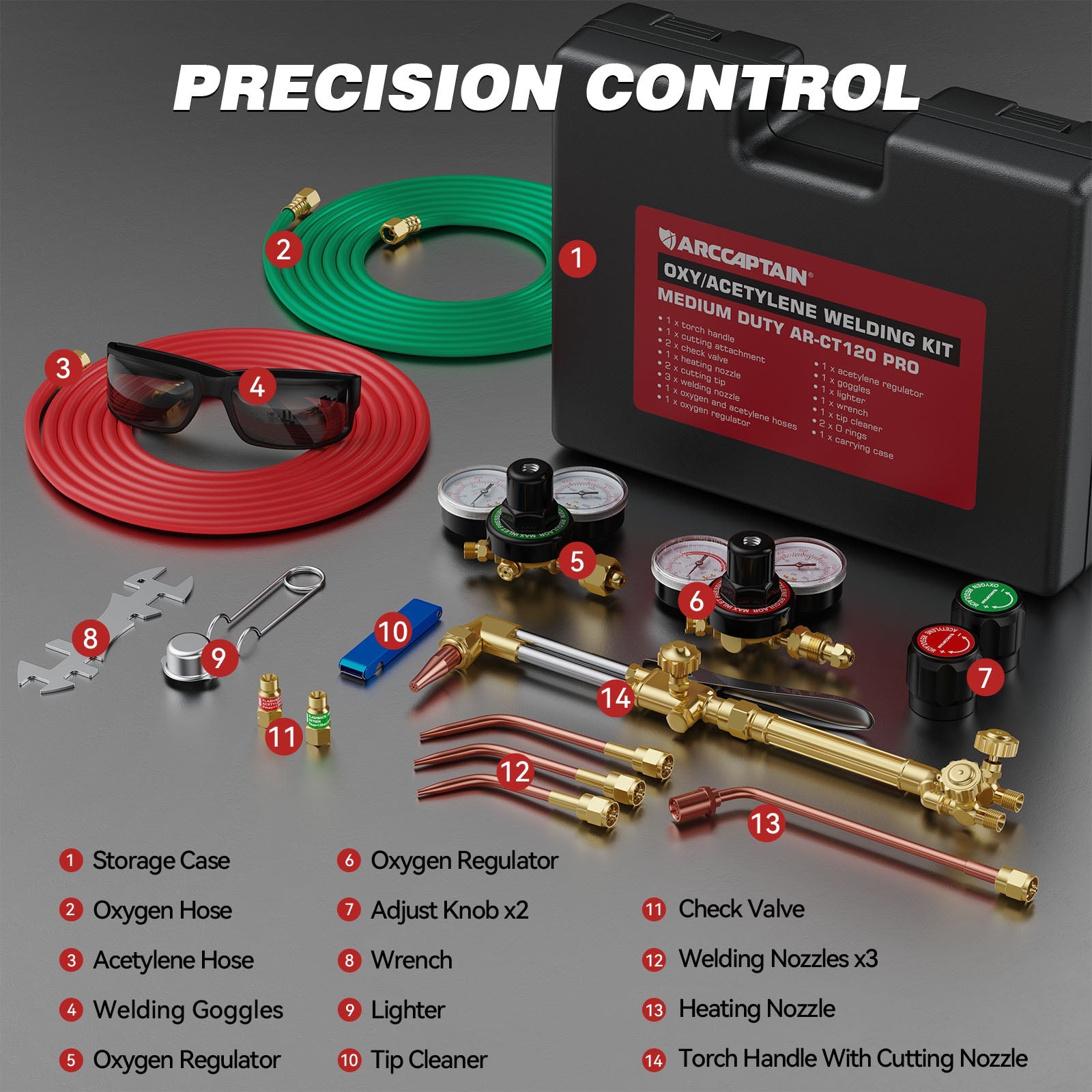

Everything you need is included: torch handle ×1, cutting attachment ×1, #6 heating tip ×1, 1-3-101 cutting tip ×1, welding tips (#0, #2, #6) ×3, flashback arrestors ×2, 15 ft oxygen and acetylene hoses ×1, oxygen & acetylene regulators ×1 each, goggles ×1, striker ×1, wrench ×1, tip cleaner ×1, O-rings ×2, and a carrying case ×1. This all-in-one kit ensures fast, efficient work and is perfect for both beginners and experienced users.
Oxy-Acetylene Cutting vs Plasma Cutting
| Feature | Oxy-Acetylene Cutting | Plasma Cutting |
|---|---|---|
| Working Principle | Uses an oxy-fuel flame to preheat the steel to its ignition temperature, then a high-pressure oxygen jet oxidizes and blows away the molten metal. | Uses a high-temperature, high-velocity plasma arc to melt the metal and blow it away with compressed gas. |
| Energy Source | Oxygen + fuel gas (acetylene, propane, natural gas, etc.) | Electricity + compressed air (or nitrogen, argon, etc.) |
| Temperature | Flame temperature ~ 3,200°C (5,800°F) | Plasma arc temperature up to 20,000°C (36,000°F) |
| Material Compatibility | Best for carbon steel; not ideal for stainless steel, aluminum, or non-ferrous metals. | Cuts almost all conductive metals, including carbon steel, stainless steel, aluminum, and copper. |
| Cutting Thickness | Excellent for thick plate (>5mm), can cut up to several inches. | Best for thin to medium thickness (0.5–50mm), industrial units can cut thicker. |
| Speed | Slower, but efficient for thick materials. | Very fast on thin and medium materials. |
| Cut Quality | Rougher edges, larger heat-affected zone, may require grinding. | Smoother edges, minimal heat-affected zone, higher precision. |
| Portability | Gas cylinders can be moved easily, ideal for field work. | Requires power source and air compressor (some portable units have built-in compressors). |
| Safety Considerations | Risk of gas explosion; open flame can ignite flammable materials. | Risk of electric shock, intense UV radiation, and molten metal spatter. |
| Cost | Lower initial cost, but ongoing gas expense. | Higher initial cost, but lower consumable cost (mainly air). |
| Typical Applications | Heavy steel plate cutting, field repairs, demolition work. | Precision fabrication, stainless steel and aluminum work, automotive repair, sheet metal jobs. |
