Arccaptain

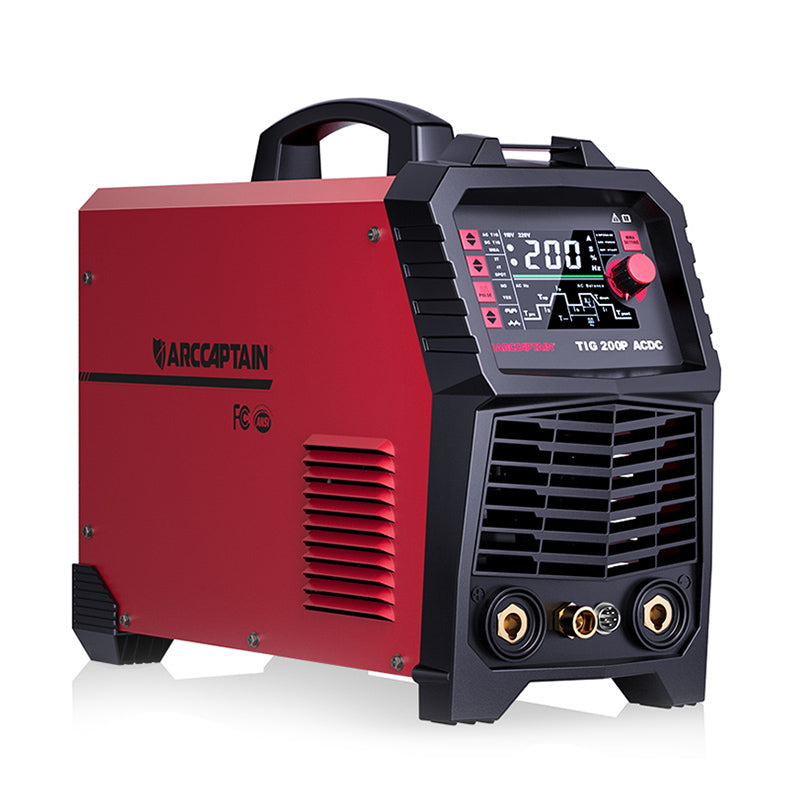

Used Multi Process Pulse TIG Aluminum Welder AC DC TIG200P

Name: Used Multi Process Pulse TIG Aluminum Welder AC DC TIG200P
Brand: Arccaptain
SKU: U-AR-TIG200PACDC-001
Price: 599.99 USD
Availability: InStock

~~$899.99~~ $599.99

SAVE $300.00 (33% OFF)

Product variants

Quantity

FLASH SALE SAVINGS

Sale ends in:

00 Days

00 Hrs

00 Mins

00 Secs

🔒 Secure checkout 📦 Free shipping

This used machine has not been used by anyone, guaranteed to be 80% new, but has some minor scratches. If you don't mind this, this AC DC TIG welder would be a great choice for you, offered at a very affordable price.

Some minor scratches on the screen and traces of foam on the power cord.

For sale: Machines in 100% quality condition. Minor scratches due to transportation. Quality warranty period: 2 years.

Warm suggestion: Before using the AC DC TIG200P, it's recommended to adjust your machine using test parameters.

Pre-flow time: 0.5s
Starting current: 50A
Rising time: 0s
Welding current: 100A
Fall time: 0s
Ending current: 20A
AC frequency: 100HZ
Cleaning width: 30%
Welding material: 5mm aluminum plate
Tungsten electrode diameter: 2.4mm

Technical Parameters

The ARCCAPTAIN TIG200P AC/DC Pulse Tig Aluminum Welder offers excellent welding performance and versatility when working with aluminum. Thanks to its AC/DC capabilities, you'll have access to adjustable pulse characteristics and a wide range of welding modes. This creates an ideal environment for welding aluminum, making it an ideal choice for those working with this metal.

Project Name	Unit	Value
Power voltage	VAC	AC110V±15% AC220V±15%
Input frequency	Hz	50
Rated input current	A	33@TIG 35@MMA
Capacity of power supply	KVA	6.0@TIG 7.5@MMA
Output current range (TIG)	A	10~120(110 v) 10~200 (220v)
Output current range (MMA)	A	10~110(110v) 10~160(220v)
Arc force range	A	0~40
Hot start current range	A	0~80
No-load voltage	V	60
Rated working voltage	V	18@TIG 26.4@MMA
AC output frequency	Hz	20~250
AC balance	%	20~60
Background level	A	10~200
Pulse frequency	Hz	0.5~200 (DC) 0.5~25(AC)
Pulse duty factor	%	5~95
Pre-flow time	S	0~5
Post-flow time	S	0~15
Rising time	S	0~15
Fall time	S	0~15
Remote control	-	Yes
Arc start mode	-	HF arc starter
Efficiency (%)	%	80
Duty cycle (%)	%	TIG: 200@25% - MMA: 160@25%
Power factor	-	0.70
Type of cooling	-	Air cooled
Working temperature range	°C	—10~+40
Storage temperature range	°C	—25~+55
Protection class	-	IP21S
Insulation class	-	B

View full details

Is Welding Too Hard to Learn? Not Anymore!

Welding used to be tough and risky, but with the Arccaptain MIG205MP, it's now easy. This app-controlled, multi-functional welder and cutter is perfect for DIY, workshops, and industrial use. With the app, you can easily adjust settings remotely, giving you full control from your phone. Plus, you can save and recall preset scenes anytime, ensuring your settings are always ready. No more manual tweaks—just tap, set, and weld! Let’s keep the welding tradition alive!

Control Your Welder Like Never Before

Break free with the ARCCAPTAIN MIG205MP! Its large screen and SYN control make welding effortless, while the mobile app empowers you to fine-tune parameters and save your favorite settings for future use. With versatile modes and precision, it’s perfect for all skill levels.

Large Digital Screen Control with Easy SYN Mode

Effortless SYN Control
10 Customizable Presets
Clear, Accurate Data Display
Safety Color Alerts

App-Controlled for Convenient Parameter Adjustments

Easily Adjust Settings Remotely with the App
Save and Recall Preset Scenes Anytime
Adjust Settings from Anywhere

MIG205MP memory channels and saved welding presets

```

All-in-one Multi-Process Welder User-Friendly and Powerful

Master Every Job with Versatile Welding & Cutting Modes

Combining MIG, Pulse MIG, TIG Pulse, MMA, Plasma Cutting, Flux-Cored, and Cleaning in one compact machine, the ARCCAPTAIN MIG205MP offers high-frequency TIG start, foot-pedal control, and efficient cooling for precision and reliability on every job.

Precise Welding, Perfect Result

A Welder for All Your Everyday Tasks

MIG, Pulsed MIG, Gasless MIG & More in One!

MIG205MP offers easy welding with MIG, Pulsed MIG, Gasless MIG, and more. It delivers precise, powerful results for both beginners and professionals, perfect for any welding job.

Button label

TIG Welding

Master precision welding with high-frequency TIG start and foot-pedal control. Independent cooling ducts guarantee reliable, long-lasting performance for every job, even under intense use.

Button label

Plasma Cutting

Easily cuts through stainless steel, aluminum, copper, and more, providing precise cuts for any project.

Button label

MMA Welding

Achieve flawless Stick welding with the ARCCAPTAIN MIG205MP! Its Hot Start and Arc Force provide smooth starts and stable arcs, making it perfect for repairs and DIY projects.

Button label

Cleaning Function

It doesn’t just weld and cut—it also features a cleaning function for residue-free finishes and flawless results. For optimal performance, use it with the dedicated welding cleaning agent on every project.

Button label
